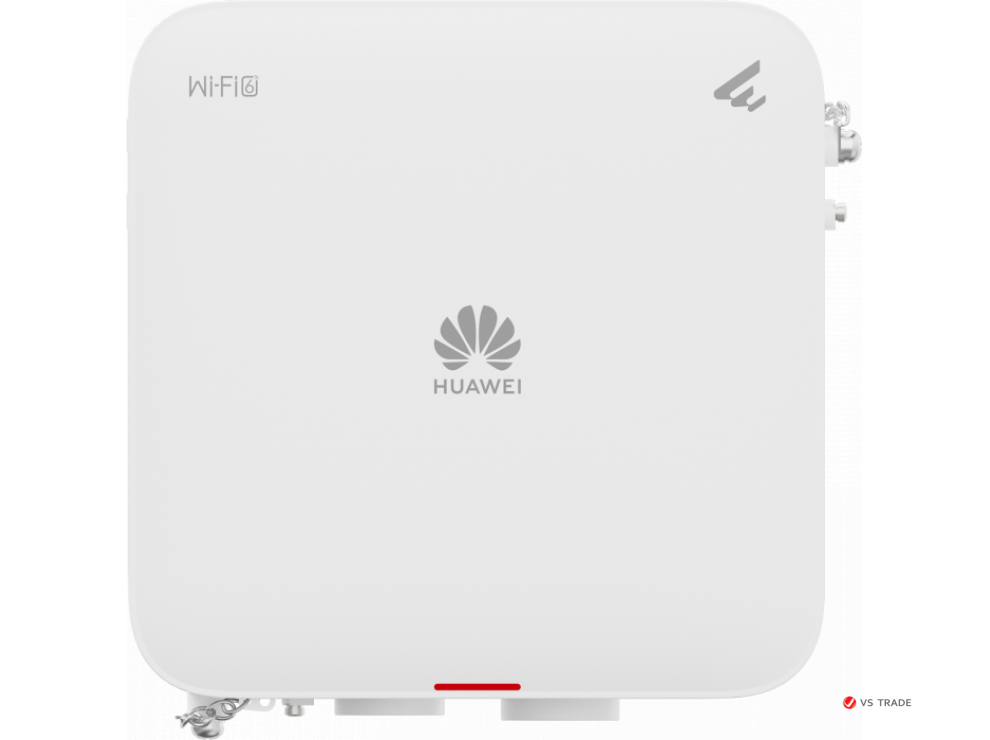

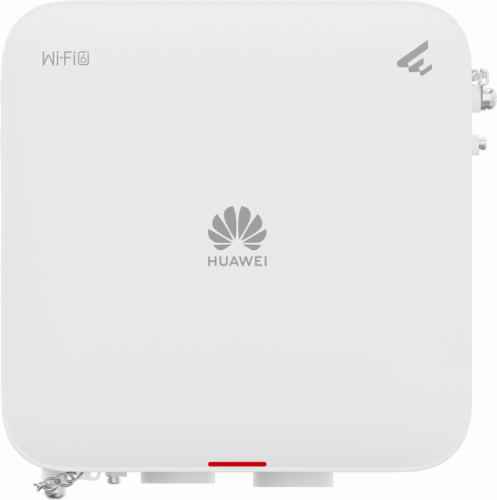

Точка доступа HUAWEI AP761 Wi-Fi 6 outdoor AX1800 (2.4/5GHz, 2x2/2x2 MIMO, 1*GE RJ45 PoE+/1*SFP, IP68 -40 to +60C)

02355VFB

AP761

AP761(11ax outdoor,2+2 dual bands,built-in antenna,BLE)

V200R023C10

Wall,Pole

69 mm

200 mm

200 mm

3.73 kg (8.22 lb)

1.91 kg (4.21 lb)

GE (RJ45) x 1, 10M/100M/1000M auto-sensing
GE optical port (SFP)

17.7

60.4

PoE

PoE: 802.3at/af

No function is limited.

No function is limited.

Wi-Fi: 2.4 GHz (2x2) + 5 GHz (2x2). The maximum combined power is adjusted to 23 dBm (2.4 GHz) and 23 dBm (5 GHz).
Wired network port: The SFP optical port and GE/PoE_IN work as combo ports, and only one of them is working at a time. If both of them are enabled, the optical port takes effect preferentially.

2.4 GHz: 802.11b/g/n/ax
5 GHz: 802.11a/n/ac/ac Wave 2/ax

2.4G: 10 dBi
5G: 11 dBi
BLE: 5 dBi

2.4G: 28 dBm (Max)
5G: 27 dBm (Max)
Note: This is the total MIMO radio power, which is the same as:
2.4G: 25 dBm/chain (Max)
5G: 24 dBm/chain (Max)
BLE: < 10 dBm

2

Radio 0 (2.4 GHz): 2x2
Radio 1 (5 GHz): 2x2

Built-in directional antennas

2.4 GHz:
- Horizontal plane: 65°
- Vertical plane: 40°
5 GHz:
- Horizontal plane: 65°
- Vertical plane: 20°

2.4GHz,5GHz

NAND Flash 512 MB

–40°C to +65°C (–40°F to +149°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)

–40°C to +85°C (–40°F to +185°F)

0% RH to 100% RH

–60 m to +5000 m (–196.85 ft to +16404.20 ft)

123

0.5

BLE console

53kPa - 106kPa ETSI 300 019-2-3

IP68

6 kA in common mode

N/A

Ground

67 m/s

BLE5.2

Supported
