Современная дистрибуция IT решений

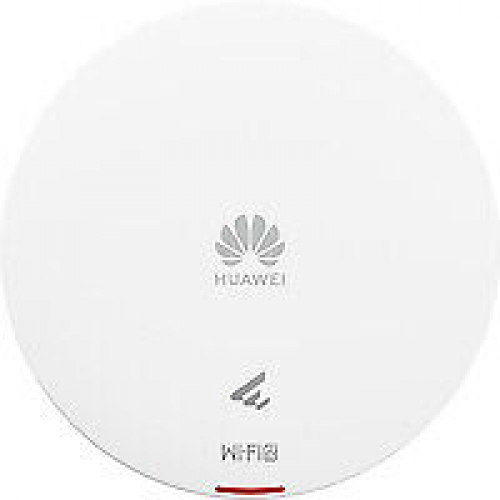

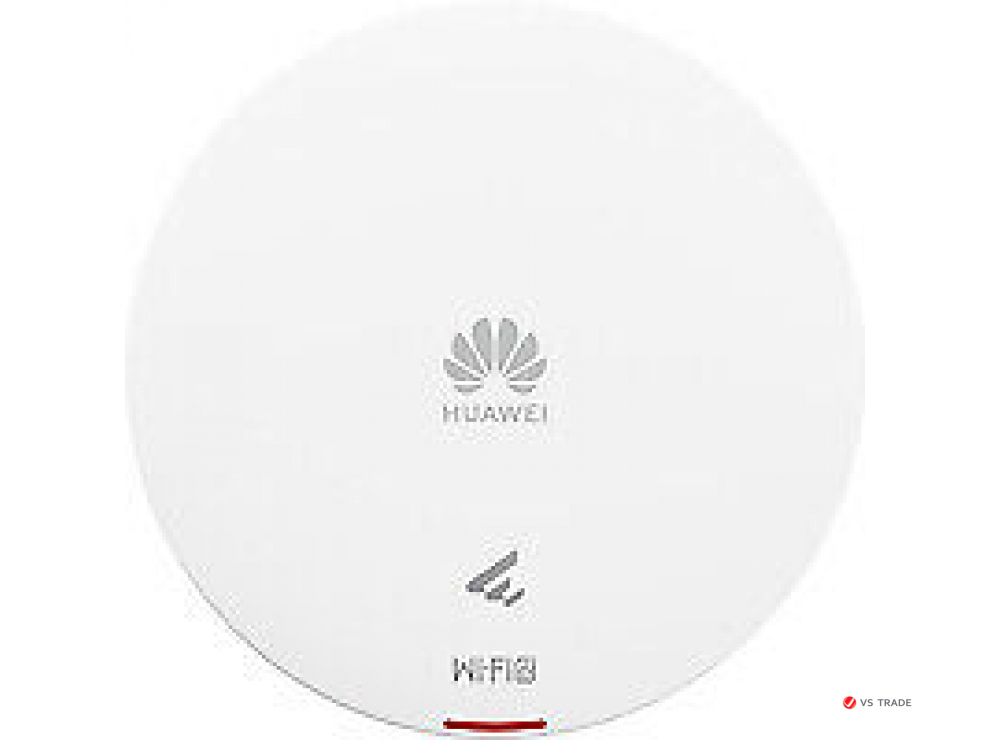

Точка доступа HUAWEI AP361 Wi-Fi 6 indoor (2.4/5 GHz, 2x2/2x2 MIMO, 1*GE PoE RJ45, internal smart antennas)
Понравилось? Расскажи друзьям!
Артикул: AP361 Huawei AP 50086871
Точка доступа HUAWEI AP361 Wi-Fi 6 indoor (2.4/5 GHz, 2x2/2x2 MIMO, 1*GE PoE RJ45, internal smart antennas)
Остаток на складе: 121
03:24:37 - 08.12.2025
Характеристики
| Basic Information | |
| Part Number |
50086871 |
| Model |
AP361 |
| Description |
AP361(11ax indoor,2+2 dual bands,smart antenna) |
| First supported version |
V200R023C00 |
| Technical Specifications | |
| Installation Type |
Wall,Ceiling,T-Rail |
| Diameter [mm] |
180 mm |
| Height [mm] |
35 mm |
| Weight with packaging [kg(lb)] |
0.75 kg (1.65 lb) |
| Weight without packaging [kg(lb)] |
0.45 kg (0.99 lb) |
| Maximum number of physical ports on the entire device |
GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Maximum power consumption [W] |
8.8 |
| Maximum heat dissipation [BTU/hour] |
28.5 |
| Power supply mode |
PoE |
| Input voltage range [V] |
PoE: 802.3af |
| Rated input voltage [V] |
NA |
| 802.3at power supply description |
No function is limited. |
| DC power supply description |
DC power supply is not supported. |
| 802.3bt power supply description |
No function is limited. |
| 802.3af power supply description |
No function is limited. |
| Wi-Fi standard |
2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax |
| Antenna gain [dBi] |
2.4G: 4 dBi/chain (peak) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) |
| Maximum transmit power [dBm] |
2.4G: 17 dBm/chain 20 dBm (combined power) 5G: 17 dBm/chain 20 dBm (combined power) |
| Radio number |
2 |
| MIMO spatial streams |
Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Radio interface |
Built-in smart antennas |
| Operating frequency band |
2.4GHz,5GHz |
| Storage |
NAND Flash 256 MB |
| Long-term operating temperature [°C(°F)] |
0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] |
–40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] |
5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] |
–60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| MTBF [year] |
440.3 |
| MTTR [hour] |
2 |
| Console port |
None |
| Atmospheric pressure [kPa] |
53kPa - 106kPa ETSI 300 019-2-3 |
| Service port surge protection [kV] |
PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B |
| Ground |
floating ground |
| BLE |
Not supported |
| 3G/LTE filte (ACC) |
Not supported |
Показать полностью
Свернуть описание
Вес товара: 10000 г
- Бренд
- Код производителя
- 50086871
- Штрих код
- 6901443451135
- Код товара
- 319411
- Гарантия
- 36 месяцев
- Полное описание
- Точка доступа HUAWEI AP361 Wi-Fi 6 indoor (2.4/5 GHz, 2x2/2x2 MIMO, 1*GE PoE RJ45, internal smart antennas)
