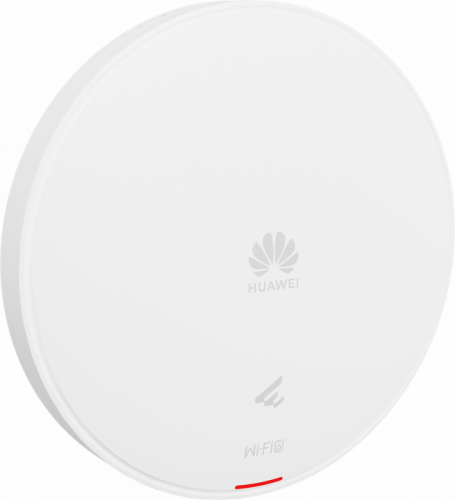

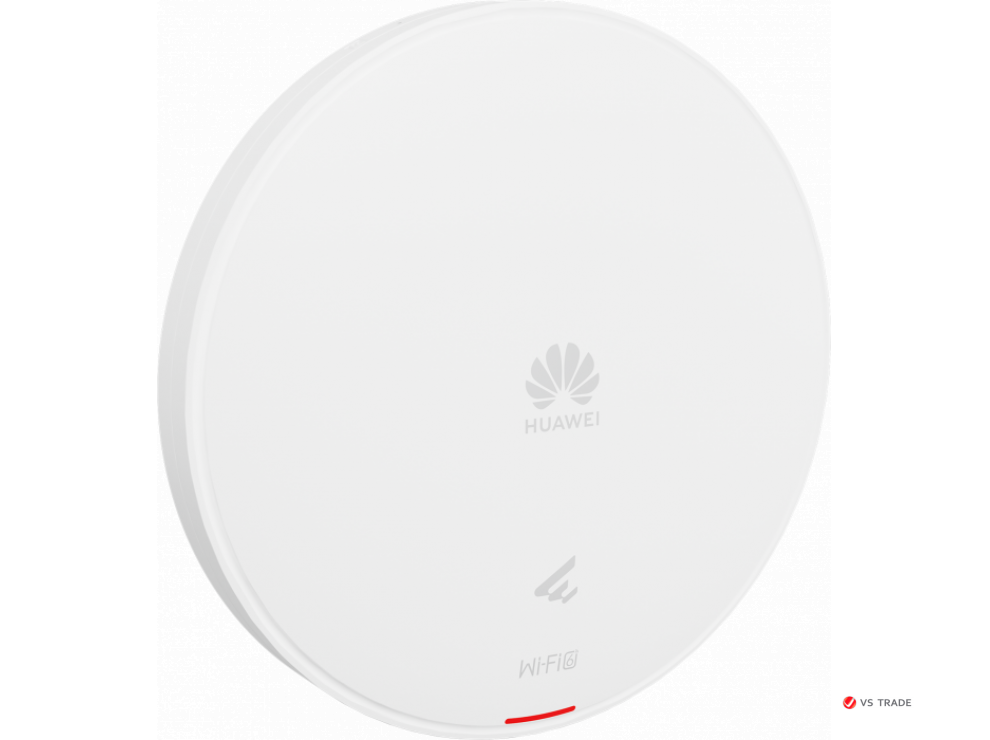

Точка доступа HUAWEI AP661 Wi-Fi 6 indoor Triple-Radio AX6600 (2.4/5/5 GHz, 2x2/2x2/4x4 MIMO, 1*2.5GE PoE+/1*GE RJ45)

02355VFC

AP661

AP661(11ax indoor,2+2+4 tri bands,smart antenna,USB,BLE)

V200R023C10

Wall,Ceiling,T-Rail

220 mm

50 mm

1.08 kg (2.38 lb)

2.5GE (RJ45) x 1, 100M/1000M/2.5G auto-sensing
GE (RJ45) x 1, 10M/100M/1000M auto-sensing

21.2 (excluding USB), 802.3at/af power supply

DC adapter,PoE

DC: 12 V ± 10%
PoE: 802.3at/af

12 V

No function is limited.

No function is limited.

Wi-Fi: 2.4 GHz (2x2) + 5 GHz (1x1, high band) + 5 GHz (1x1, low band). The maximum combined power is adjusted to 21 dBm (2.4 GHz radio) and 18 dBm (5 GHz radio).
Wired network port: The 2.5GE/PoE_IN electrical port is used as a GE port, and the GE electrical port is unavailable.
Other ports: The USB port is unavailable.

2.4 GHz: 802.11b/g/n/ax
5 GHz: 802.11a/n/ac/ac Wave 2/ax

2.4G:
4 dBi/chain (peak value)
2 dBi (combined gain)
5G:
5 dBi/chain (peak value)
3 dBi (combined gain)
BLE: 4 dBi

2.4 GHz:
22 dBm/chain
25 dBm (combined power)
5 GHz (2x2):
20 dBm/chain
23 dBm (combined power)
5 GHz (4x4):
20 dBm/chain
26 dBm (combined power)
BLE: < 10 dBm

3

Radio 0 (2.4 GHz): 2x2
Radio 1 (5 GHz-H): 2x2 (high frequency band: 5490–5850 MHz)
Radio 2 (5 GHz-L): 4x4 (low frequency band: 5150–5330MHz)

Built-in smart antennas

2.4GHz,5GHz

NAND Flash 512 MB

–10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)

–40°C to +70°C (–40°F to +158°F)

5% RH to 95% RH, non-condensing

–60 m to +5000 m (–196.85 ft to +16404.20 ft)

96

0.5

USB 2.0

BLE console

53kPa - 106kPa ETSI 300 019-2-3

PoE port:
Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B
Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B

floating ground

BLE5.2

Supported
