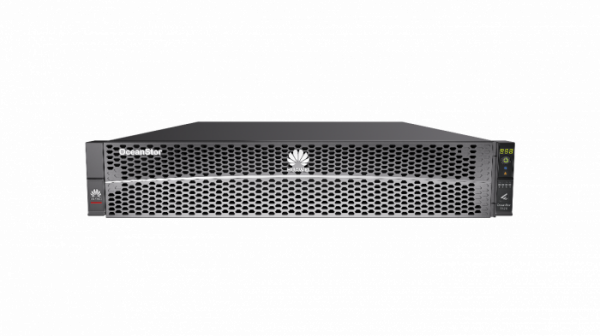

СХД HUAWEI OceanStor 5120-S-L-64G-AC (2U, 123.5 SAS, Dual Controllers, 64GB Cache, 81GE, 4*10GE SFP+, LIC-5120V6-BP)

14:37:19 - 18.10.2024

Читать отзывы Напиши отзыв первым!

Понравилось? Расскажи друзьям!

Артикул: 5120-S-L-64G-AC HUAWEI 02356FRU

СХД HUAWEI OceanStor 5120-S-L-64G-AC (2U, 12*3.5 SAS, Dual Controllers, 64GB Cache, 8*1GE, 4*10GE SFP+, LIC-5120V6-BP)

Остаток на складе: 4

Регистрация

14:37:19 - 18.10.2024

Характеристики Отзывы о товаре

Характеристики

System Cache (Dual-Controller)	32GB/64GB
Maximum Cache (Dual-Controller; Expands with Controllers)	32GB-256GB
Supported Storage Protocols	FC, iSCSI, NFS, CIFS
Front-End Port Types	8/16/32 Gbps FC, 1/10/25 Gbps Ethernet
Back-End Port Types	SAS 3.0
Maximum Number of Hot-Swappable I/O Modules per Controller Enclosure	4
Maximum Number of Front-End Ports per Controller Enclosure	28
Disk Types	SSD, SAS, NL-SAS
Supported SCMs	Not supported
Supported RAID Levels	RAID 10, RAID 5, RAID 6, and RAID-TP (tolerating simultaneous failure of 3 disks)
Value-Added Features	SmartAcceleration, SmartThin, SmartMigration, HyperSnap, SmartQoS, HyperLock, SmartMulti-Tenant, SmartQuota, SmartErase, HyperVault, HyperMetro, HyperReplication, HyperClone, SmartVirtualization, HyperCDP, HyperEncryption, SmartCompression, SmartMobility, SmartMigration for NAS
Storage Management Software	UltraPath, DeviceManager, BCManager, DME IQ
Power Supply	100 V to 240 V AC±10%, 192 V to 288 V DC –38.4 V to –75 V DC (only supported by disk enclosures)
Controller Enclosure Dimensions (H x W x D)	2.5-inch controller enclosure: 86.1 mm × 447 mm × 410 mm 3.5-inch controller enclosure: 86.1 mm × 447 mm × 488 mm
Disk Enclosure Dimensions (H x W x D)	2.5-inch SAS disk enclosure: 86.1 mm × 447 mm × 410 mm 3.5-inch SAS disk enclosure: 175 mm × 447 mm × 488 mm
Controller Enclosure Weight (Excl. Disk Units)	2.5-inch controller enclosure: 16.4 kg 3.5-inch controller enclosure: 16.3 kg
Disk Enclosure Weight (Excl. Disk Units)	2.5-inch SAS disk enclosure: 13.4 kg 3.5-inch SAS disk enclosure: 26.5 kg
Operating Temperature	–60 m to +1800 m altitude: 5°C to 35°C (cabinet) or 40°C (enclosure) 1800 m to 3000 m altitude: The maximum temperature threshold decreases by 1°C for every altitude increase of 220 m
Operating Humidity	10%～90％R.H.

Показать полностью Свернуть описание

Вес товара: 29000 г

СХД HUAWEI OceanStor 5120-S-L-64G-AC (2U, 12*3.5 SAS, Dual Controllers, 64GB Cache, 8*1GE, 4*10GE SFP+, LIC-5120V6-BP)

Бренд
Код производителя: 02356FRU
Штрих код: 02356FRU
Код товара: 320177
Гарантия: 36 месяцев
Полное описание: СХД HUAWEI OceanStor 5120-S-L-64G-AC (2U, 12*3.5 SAS, Dual Controllers, 64GB Cache, 8*1GE, 4*10GE SFP+, LIC-5120V6-BP)
