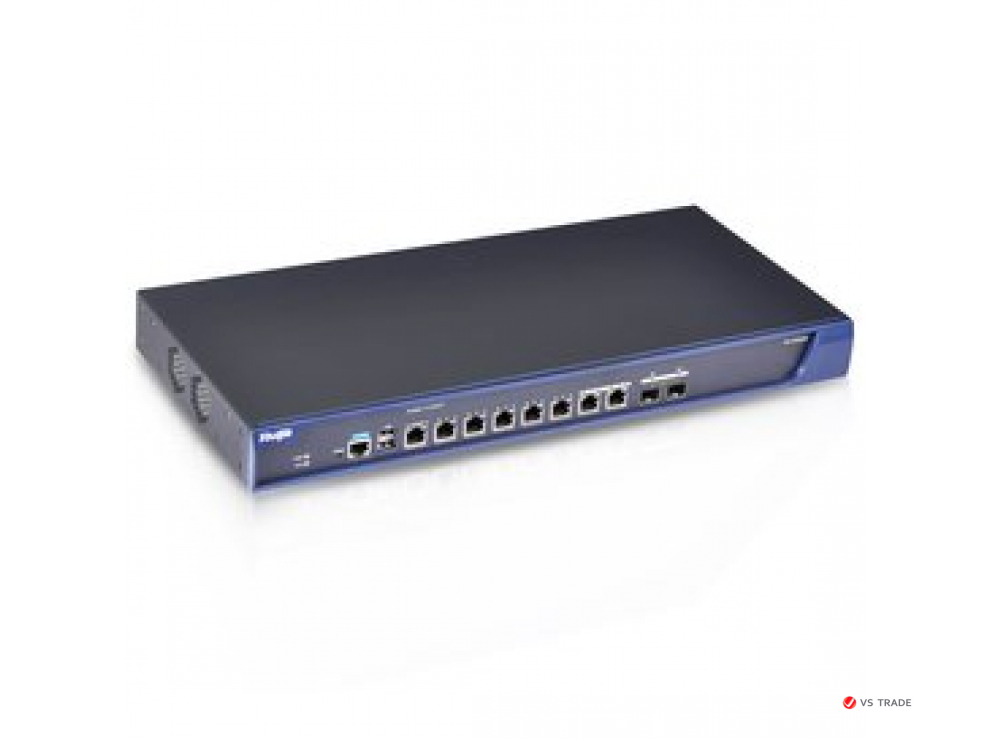

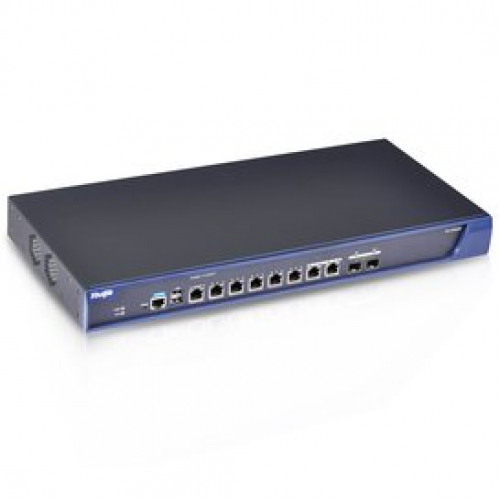

Контроллер Wi-Fi AP RUIJIE RG-WS6008 (6x1GbE; 2x1GbE/2xSFP combo ports 32AP - 224AP(448 wall AP) with license upgrade)

- Interfaces

Service Ports

6x 1000BASE-T ports
2x 1000BASE-T/1000BASE-X ports (combo)

Console Ports

1x Console Port

USB Ports

2x USB ports

- Performance

Switching Capacity

N/A

Packet Forwarding Rate

N/A

Default Number of Manageable APs

32

Maximum Number of Manageable APs

224 APs or 448 wall APs (with license upgrade)

Maximum Number of Configurable APs

2,048

Maximum Number of Clients

6,400

802.11 Performance

8Gbps

VLAN

4,094

Maximum Number of Clients Supported by the Built-in Portal

1,500

ACL

64K

Number of Wireless Users

6,400

MAC Address Table

16K

Local Authentication

300 wireless clients

ARP Table

12K

IPv6 Neighbor Table

10K

Inter-AC Roaming Switch Time

≤50ms

- Power

Power Supply

-Fixed power supply 100VAC to 240VAC, 50Hz to 60Hz

Power Consumption

<40W

- LAN

802.1Q VLAN

Support

PoE

N/A

QinQ

N/A

ACL

Standard IP ACL, Extended IP ACL, MAC-extended ACL, Expert ACL

QoS

N/A

Bandwidth control

Support

- WLAN

LAN Protocols

ARP, VLAN, 802.1p, 802.1q, 802.1d, 802.1w, 802.1s

802.11 LAN Protocols

802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac

Pre-AX

Supported

CorrectLink

Supported

AirReorder

Supported

CAPWAP

Layer 2/Layer 3 network topology between an AP and AC
Enable an AP to automatically discover an accessible AC
Enable an AP to automatically upgrade software version from an AC
Enable an AP to automatically download configurations from an AC
Network Address Translation (NAT) traversal

Roaming

Intra-AC roaming, Inter-AC roaming

Forwarding

Local forwarding, Centralized forwarding

Wireless QoS

AP-based bandwidth control, WLAN-based bandwidth control, User-based static and smart speed control, Fair balancing

User Isolation

AC-based user isolation
AP-based user isolation
WLAN-based user isolation

Reliability

Fast switching between 2 ACs, Multiple ACs redundancy (1:1 A/A and A/S, N:1), Multiple ACs clustering (N:N), Remote Intelligent Perception Technology (RIPT), Service upgrade

STA Management

AP-based STA access control, SSID-based STA access control, AP-based load balancing, AP traffic-based load balancing, 5G priority access, RSSI threshold

STA RSSI Threshold

0 to 100

STA Idle Timeout

60 to 86,400 seconds

STA Average Data Rate Threshold

8 to 819,200 with the accuracy of 8Kbps

Adjusting Transmit Power of Beacon and Probe Response

Support

Offline Syslog

Support

- Security

IPv4/v6 Security

Web authentication, 802.1x authentication (EAP-PEAP, EAP-SIM, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP-MSCHAPv2, EAP-FAST, EAP-AKA), MAC address authentication

PPSK

Supported

Virtual AP

Supported

Virtual AC

Supported

802.11 Security and Encryption

Multiple SSIDs, SSID hiding, 802.11i-compliant PSK authentication, WPA and WPA2, WEP (WEP/WEP128), WAPI, TKIP, CCMP, Protection against ARP spoofing

AAA

IEEE 802.1X

CPP

Support

NFPP

Support

WIDS/WIPS

Support

- Internet Protocols

IPv4 Protocols

Ping, Traceroute, DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping, DNS Client, NTP, Telnet, TFTP Client

IPv6 Protocols

DNSv6 Client, DHCPv6 Relay, DHCPv6 Server, TFTPv6 Client, FTPv6 Server, FTPv6 Client, IPv6 CAPWAP, ICMPv6, IPv6 Ping, IPv6 Traceroute, Manual tunnel, automatic tunnel
Manual configuration address, automatic local address

IPv4 Routing

Static routing, OSPF

IPv4 Routing Table Capacity

8K

IPv4 Static Routing Table Capacity

1K

IPv6 Routing

Static routing

IPv6 Routing Table Capacity

1K

IPv6 Static Routing Table Capacity

1K

- Management and Maintenance

Network Management

SNMP v1/v2c/v3, Web management, Syslog

Network Management Platform

Web management (Smart-web), RG-SNC management, Heat Map diagram

WIS Integration

Supported

User Access Management

Login via console port
Login via Telnet
Login via SSH
Upload to FTP

- Physical Specification & Others

Lock

Support

LED Indicators

Status, Link/ACT

Dimensions (W x D x H) (mm)

440 × 200 × 43.6

Rack Height

1RU

Weight

2kg

- Environmental Specifications

Temperature

Operating Temperature: 0ºC to 45ºC
Storage Temperature: -40ºC to 70ºC

Humidity

Operating Humidity: 10% to 90%RH (non-condensing)
Storage Humidity: 5% to 95%RH (non-condensing)

Operating Altitude

0-3000m

- Certification

EMC Standard

GB9254
EN301 489

Safety Standard

GB4943
EN/IEC 60950-1
