Артикул: S110-8T2ST Switch Huawei 98012199

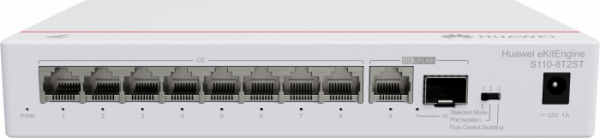

Коммутатор HUAWEI S110-8T2ST (8*10/100/1000BASE-T, 1*GE SFP combo 1*10/100/1000BASE-T port, 56V DC, desktop, fanless)

Остаток на складе: 10

Регистрация

14:39:34 - 18.10.2024

Характеристики Отзывы о товаре

Характеристики

Basic Information
Part Number	98012199
Model	S110-8T2ST
Description	S110-8T2ST (810/100/1000BASE-T ports, 1GE SFP port, 110/100/1000BASE-T port, with 1AC power adapter, fanless)
Technical Specifications
Chassis material	PC+ABS
Height [mm]	35 mm
Depth [mm]	130.0 mm
Wide [mm]	210.0 mm
Chassis height [U]	0.8
Weight with packaging [kg(lb)]	0.70 (1.54)
Weight without packaging [kg(lb)]	0.46 (1.01)
Maximum power consumption [W]	8.4
Typical power consumption [W]	8
Heat dissipation mode	Natural heat dissipation
Maximum heat dissipation [BTU/hour]	28.66
Typical heat dissipation [BTU/hour]	27.30
Power supply mode	Power adapter
Input voltage range [V]	Power adapter input: 90 V AC to 264 V AC; 47 Hz to 63 Hz
Rated input voltage [V]	Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 12 V DC
Maximum input current [A]	1 A
Number of power slots	0
Number of card slots	0
Memory	-
Flash memory	-
Redundant power supply	Not supported
Types of fans	None
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans), < 20
Airflow direction	-
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating temperature [°C(°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
MTBF [year]	86.16
MTTR [hour]	2
Availability	> 0.99999
Maximum number of physical ports on the entire device	10
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	0
Maximum number of GE ports	10
Maximum number of FE ports	10
Downlink ports	8 x 10/100/1000BASE-T ports
Uplink ports	1 x GE SFP port and 1 x 10/100/1000BASE-T port
USB	Not supported
Console port	Not supported
Eth Management port	Not supported
Working mode	- Standard mode - Port isolation - Flow control disabling
MAC address entry	2K
Service port surge protection [kV]	Common mode: ±4 kV
Power supply surge protection	±2 kV in differential mode, ±4 kV in common mode
RPS input	Not supported
PoE	Not supported

Показать полностью Свернуть описание

Вес товара: 8800 г

Коммутатор HUAWEI S110-8T2ST (8*10/100/1000BASE-T, 1*GE SFP combo 1*10/100/1000BASE-T port, 56V DC, desktop, fanless)

Бренд
Код производителя: 98012199
Штрих код: 6901443428045
Код товара: 319408
Гарантия: 36 месяцев
Полное описание: Коммутатор HUAWEI S110-8T2ST (8*10/100/1000BASE-T, 1*GE SFP combo 1*10/100/1000BASE-T port, 56V DC, desktop, fanless)
