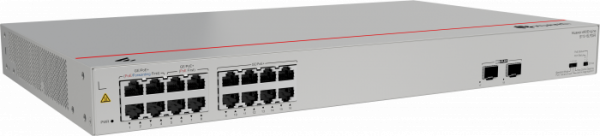

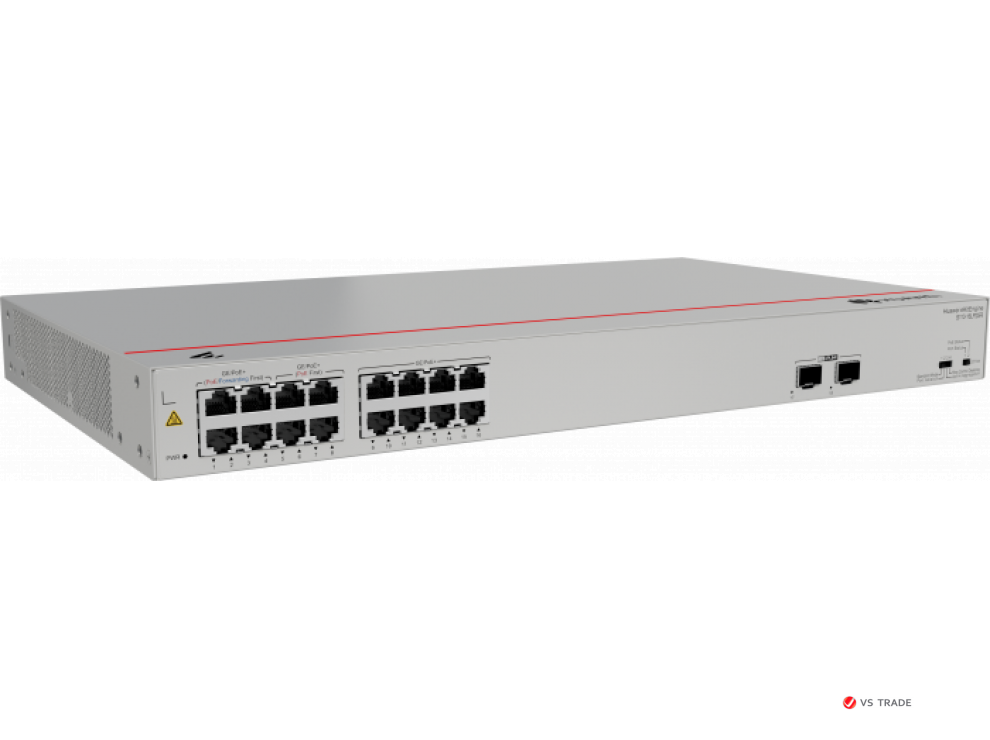

Коммутатор Huawei S110-16LP2SR (16*10/100/1000BASE-T, 2*GE SFP ports, 124W PoE+, AC power)
Понравилось? Расскажи друзьям!
Артикул: S110-16LP2SR Switch Huawei 98012197
Коммутатор Huawei S110-16LP2SR (16*10/100/1000BASE-T, 2*GE SFP ports, 124W PoE+, AC power)
Остаток на складе: 13
01:50:06 - 22.11.2024
Характеристики
| Basic Information | |
| Part Number |
98012197 |
| Model |
S110-16LP2SR |
| Description |
S110-16LP2SR (16*10/100/1000BASE-T ports, 2*GE SFP ports, PoE+, AC power) |
| Technical Specifications | |
| Chassis material |
Metal |
| Height [mm] |
43.6 mm |
| Depth [mm] |
260.0 mm |
| Wide [mm] |
442.0 mm |
| Chassis height [U] |
1 |
| Weight with packaging [kg(lb)] |
3.7 (8.16) |
| Weight without packaging [kg(lb)] |
3.0 (6.61) |
| Maximum power consumption [W] |
Without PoE: 22.0 W Full PoE load: 160.0 W (PoE: 124 W) |
| Typical power consumption [W] |
22.0 |
| Heat dissipation mode |
Natural heat dissipation |
| Maximum heat dissipation [BTU/hour] |
Without PoE: 75.07 Full PoE load: 545.94 |
| Typical heat dissipation [BTU/hour] |
75.07 |
| Power supply mode |
AC built-in |
| Input voltage range [V] |
AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz |
| Rated input voltage [V] |
AC input: 100–240 V AC; 50/60 Hz |
| Maximum input current [A] |
3 A |
| Number of power slots |
0 |
| Number of card slots |
0 |
| Memory |
- |
| Flash memory |
- |
| Redundant power supply |
Not supported |
| Types of fans |
None |
| Noise at normal temperature (acoustic power) [dB(A)] |
Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] |
Noise-free (no fans), < 20 |
| Airflow direction |
- |
| Storage temperature [°C(°F)] |
–40°C to +70°C (–40°F to +158°F) |
| Long-term operating temperature [°C(°F)] |
0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] |
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] |
5% RH to 95% RH (non-condensing) |
| Storage altitude [m(ft.)] |
0-5000 m (0-16404 ft.) |
| Long-term operating altitude [m(ft.)] |
0–5000 m (0–16404 ft.) |
| MTBF [year] |
57.77 |
| MTTR [hour] |
2 |
| Availability |
> 0.99999 |
| Maximum number of physical ports on the entire device |
18 |
| Maximum number of 100GE ports |
0 |
| Maximum number of 40GE ports |
0 |
| Maximum number of 25GE ports |
0 |
| Maximum number of 10GE ports |
0 |
| Maximum number of GE ports |
18 |
| Maximum number of FE ports |
18 |
| Downlink ports |
16 x 10/100/1000BASE-T ports (124 W PoE+) |
| Uplink ports |
2 x GE SFP ports |
| USB |
Not supported |
| Console port |
Not supported |
| Eth Management port |
Not supported |
| Working mode |
- Standard mode - Port isolation - Uplink aggregation - Flow control disabling |
| MAC address entry |
8K |
| Service port surge protection [kV] |
Common mode: ±4 kV |
| Power supply surge protection |
Differential mode: ±6 kV; common mode: ±6 kV |
| RPS input |
Not supported |
| PoE |
Supported |
Показать полностью
Свернуть описание
Вес товара: 3900 г
- Бренд
- Код производителя
- 98012197
- Штрих код
- 6901443428021
- Код товара
- 311025
- Гарантия
- 36 месяцев
- Полное описание
- Коммутатор Huawei S110-16LP2SR (16*10/100/1000BASE-T, 2*GE SFP ports, 124W PoE+, AC power)
