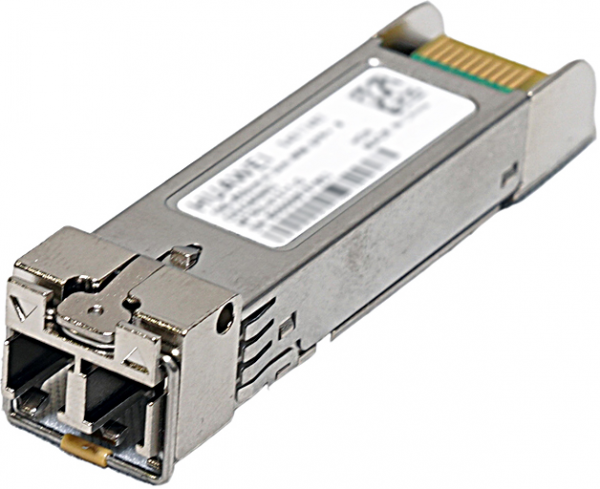

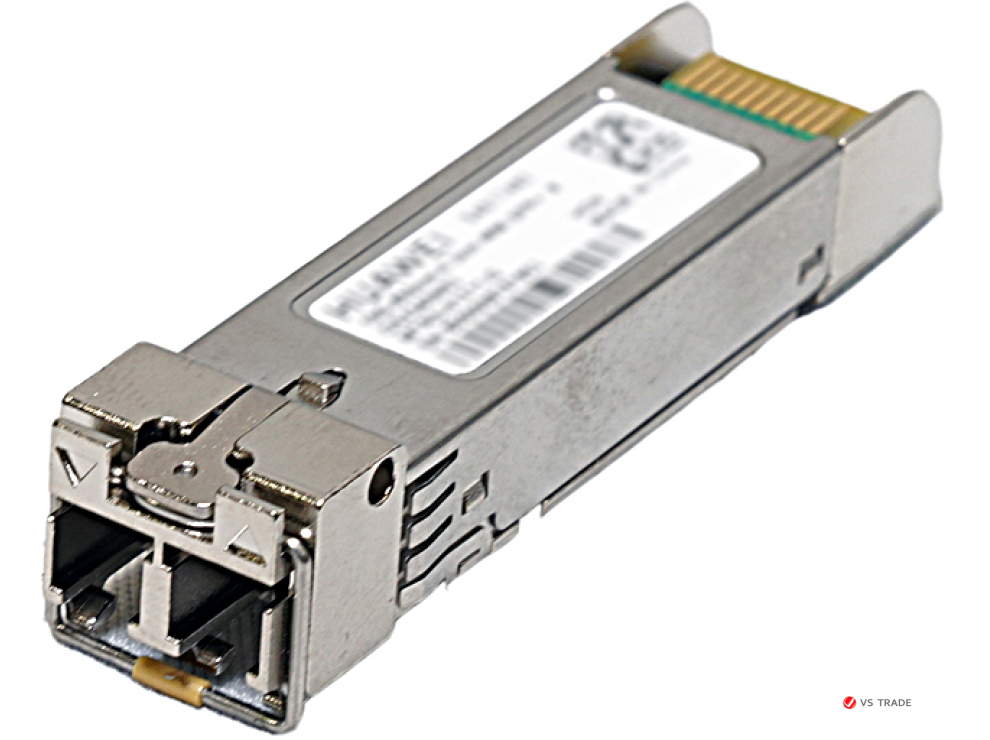

Трансивер оптический HUAWEI OMXD30000 10GBASE-SR, SFP+ Transceiver, Multi-mode (850nm, 300m, LC)
Понравилось? Расскажи друзьям!
Артикул: OMXD30000 Huawei 02318169
Трансивер оптический HUAWEI OMXD30000 10GBASE-SR, SFP+ Transceiver, Multi-mode (850nm, 300m, LC)
Остаток на складе: 16
14:34:36 - 18.10.2024
Характеристики
| Basic Information | |
| Part Number |
02318169 |
| Model |
OMXD30000 |
| Description |
Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) |
| Level-1 category |
10GE SFP+ Optical Modules |
| Module name |
OMXD30000 |
| Technical Specifications | |
| Connector type |
LC/DLC |
| Optical fiber type |
MMF |
| Form factor |
SFP+ |
| Transmission rate [bit/s] |
10G |
| Target transmission distance [km] |
Multimode fiber (with diameter of 62.5 μm): 26 m Multimode fiber (OM1) (with diameter of 62.5 μm): 33 m Multimode fiber (with diameter of 50 μm): 66 m Multimode fiber (OM2) (with diameter of 50 μm): 82 m Multimode fiber (OM3) (with diameter of 50 μm): 300 m Multimode fiber (OM4) (with diameter of 50 μm): 400 m |
| Application standard/Type |
10GBASE-SR |
| Working case temperature [°C(°F)] |
0°C to 70°C (32°F to 158°F) |
| Type of the end face of the fiber ceramic ferrule |
PC or UPC |
| DDM options |
Supported |
| Modal bandwidth [MHz*km] |
Multimode fiber: 160 MHz*km Multimode fiber (OM1): 200 MHz*km Multimode fiber: 400 MHz*km Multimode fiber (OM2): 500 MHz*km Multimode fiber (OM3): 2000 MHz*km Multimode fiber (OM4): 4700 MHz*km |
| Center wavelength [nm] |
850 |
| Overload power (AVG) [dbm] |
-1.0 |
| Minimum Tx optical power (AVG) [dbm] |
-7.3 |
| Maximum Tx optical power (AVG) [dbm] |
-1.0 |
| Minimum extinction ratio [db] |
3.0 |
| Rx sensitivity (OMA) [dbm] |
-11.1 |
Показать полностью
Свернуть описание
Вес товара: 34 г
- Бренд
- Код производителя
- 02318169
- Штрих код
- 6920702795667
- Код товара
- 319397
- Гарантия
- 36 месяцев
- Полное описание
- Трансивер оптический HUAWEI OMXD30000 10GBASE-SR, SFP+ Transceiver, Multi-mode (850nm, 300m, LC)
